Type PSV Switchgear

Type PSV Switchgear

View full details

PRODUCT DESCRIPTION

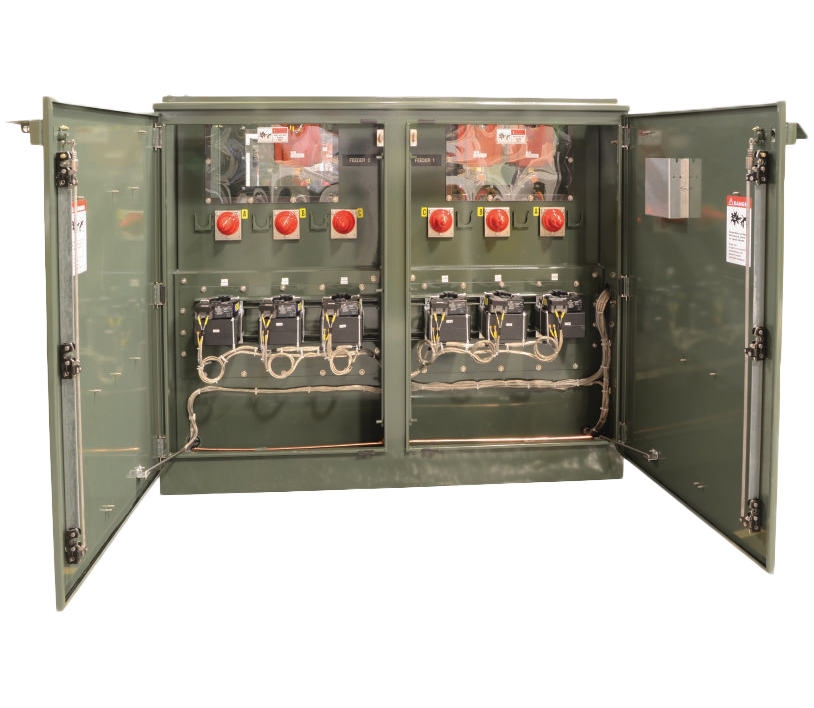

Federal Pacific Type PSV Automatic Dead-Front Pad-Mounted Switchgear is constructed using the same methods and details of the Type PSE gear.

Features

  • 15 kV and 25 kV Class – both available as UL® listed

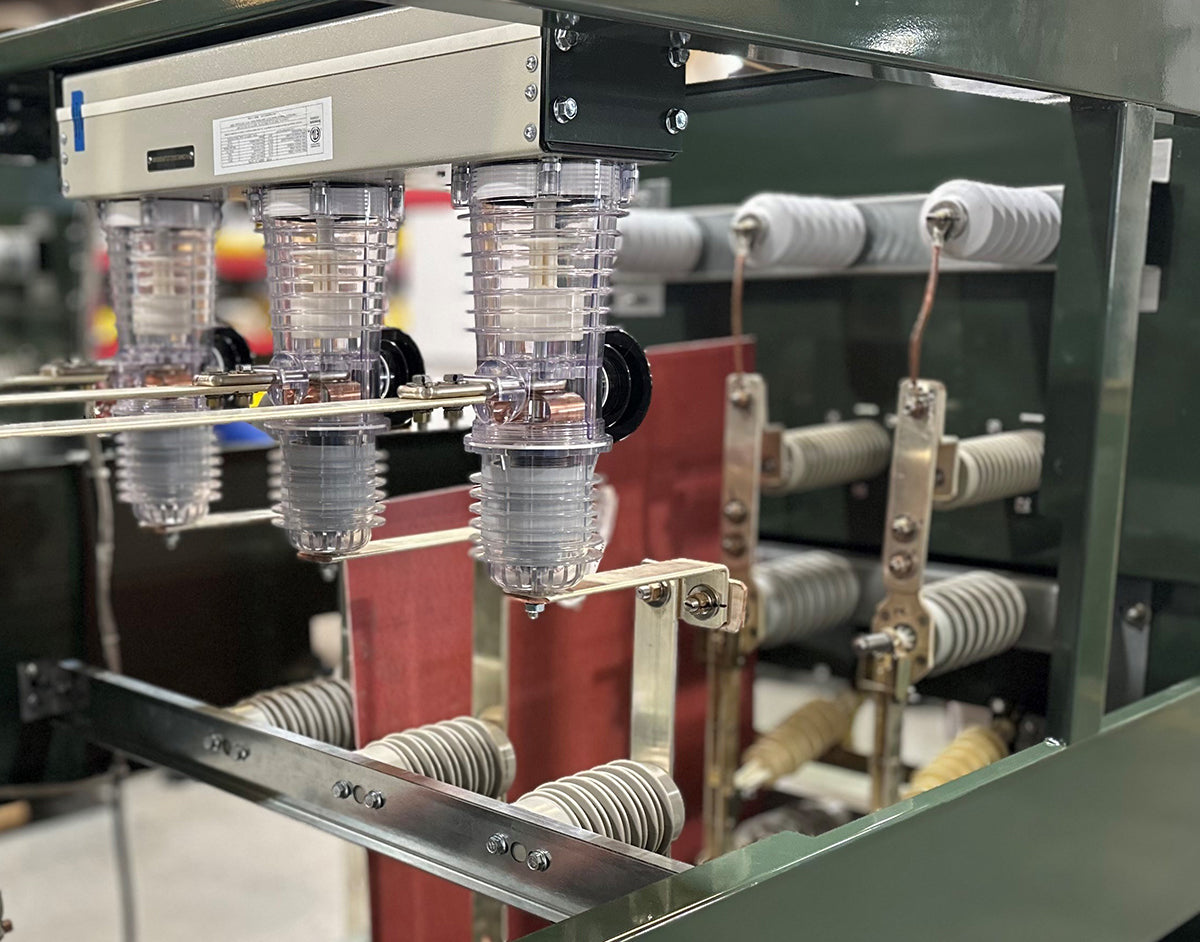

  • PSV SCADA ready vacuum switchgear is configurable with a variety of power handling and protection components

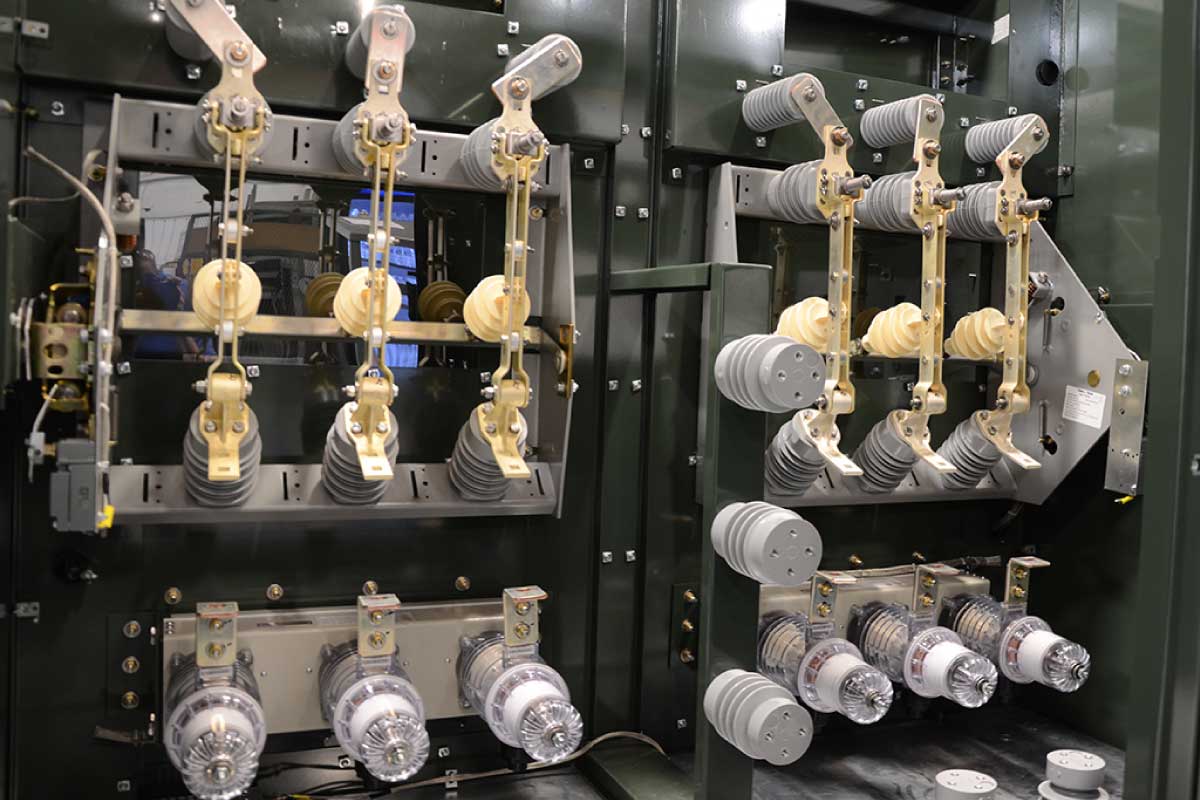

  • Proven Auto-jet® switching
  • Meets or exceeds IEEE C37.74 requirements including 3-time fault-closing on switches and fuse mountings.
  • Cycloaliphatic epoxy insulators
  • 11-gauge pickled-and-oiled steel, all welded construction
  • A 16-gauge galvanized steel floor panel with 1” stainless-steel screened drainage provisions.
  • Meets ANSI C57.12.28 cabinet security and enclosure finish requirements
  • Stainless-steel door-handle covers and switch operating pockets
  • Stainless-steel hinges and hinge pins
  • Overlapping active-passive door system with 3-point auto-latch door mechanism, padlockable door handle and standard penta- head or optional hex-head security bolts
  • Ventilation louvers not required; sufficient ventilation being attained through non-gasketed doors and roof
  • Anti-condensation roof undercoating
  • Positive Latch Indicator on fuse interrupters verifies full-latched condition

Product Brochure - Type PSV Automatic Dead-Front Pad-Mounted Switchgear (pdf)
