TESLA 4000 DFR

TESLA 4000 DFR

Contact us for more information on this product


View full details

PRODUCT DESCRIPTION

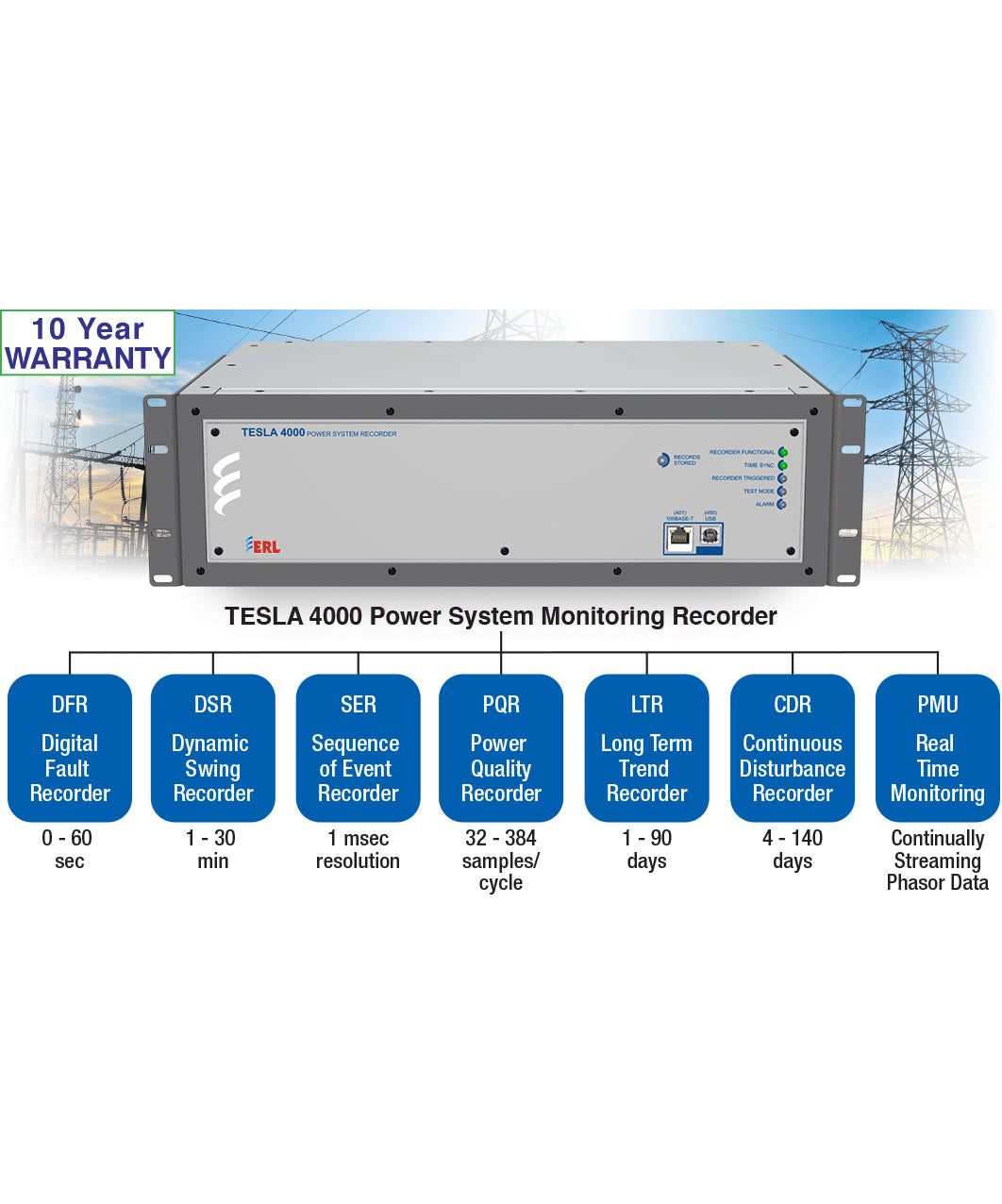

TESLA 4000 is an easy-to-use and cost effective, state-of-the-art, multi-time frame (simultaneous) digital fault recorder. Its integrated Phasor Measurement Unit (PMU) functionality streams synchrophasor data for wide area monitoring. Enabled with IEC 61850 protocol, TESLA has advanced communication capabilities that, together with its powerful recording features, provide the most versatile and complete monitoring of power system health.

With over 1000 user definable triggers, TESLA 4000 creates records simultaneously in 3 time domains (fault (fast), swing (slow) and trend records), and also creates event logs. The CDR creates continuous records without triggers which, together with the fault, swing and trend records, provide wide area visibility of system performance. The CDR also creates redundancy in PMU data.

TESLA DFR has 256 virtual inputs to record digital status changes contained in IEC 61850 GOOSE messages, expanding its monitoring capabilities.

Applications

  • Complete integrated insight of power system health
  • Performance monitoring of substation IEDs and equipment
  • Over 1000 user settable triggers capture vital information that could be missed by relays in the system
  • Information provided for wide area monitoring (WAMS) and analysis
  • As a PMU, streams up to 36 phasors, 24 analog quantities, and 64 digital statuses simultaneously

 Features and benefits

  • Easy-to-use setting and analysis software
  • Advanced communication protocols including IEC 61850
  • Optional failover redundancy
  • SCADA support with Modbus and enhanced DNP3 communications with up to 3 DNP masters
  • CDR meets NERC PRC-002 DME standards
  • Remote input modules save on costly wiring runs
  • State-of-the-art communications (2 rear ports, 100BASE-TX RJ-45 or 100BASE-FX 1300 nm multimode optical with ST style connector to accommodate the industry's latest network-based communications)
  • Ethernet ports with 2 unique MAC addresses that easily accommodate network access security needs
  • Optional PRP, HSR and RSTP network port redundancy (4 rear ports, 100BASE-TX RJ-45 or 100BASE-FX 1300 nm multimode optical with LC style connector)
  • Time synchronization via either IRIG-B or via SNTP
  • Circular sequent of events report buffer of 500 events
  • Sampling rate up to 384 s/c
  • Complies with IEEE C37.118-2014 and IEEE/IEC 60255-118-1-2018 for P Class applications and supports M Class applications
  • Swing records with a sampling rate of 1 s/c
  • Standard storage memory of 4 GB

Download Items:

Model 4000 Data Sheet

Model 4000 Manual

Input Modules Data Sheets
