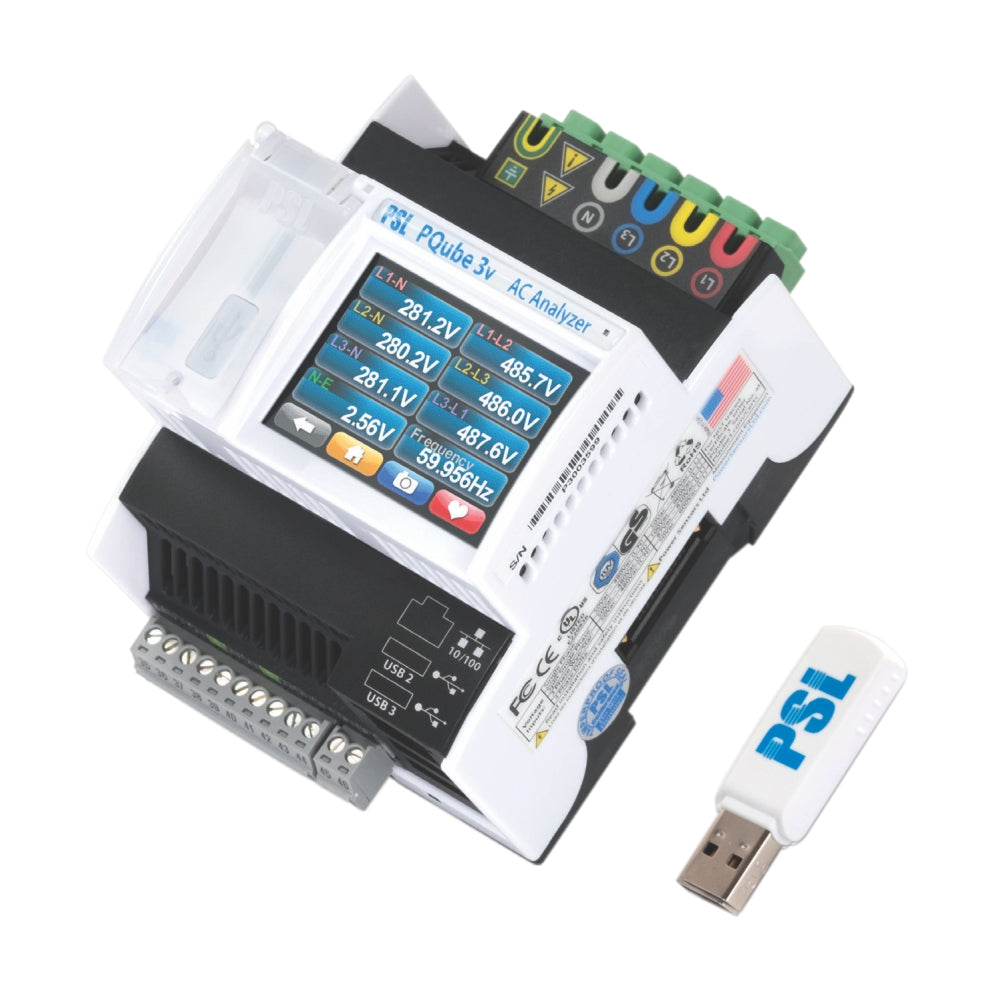

PQUBE3v Power Quality Meter

PQUBE3v Power Quality Meter

PQUBE3v Power Quality Meter is what you need when voltage quality compliance is required. It does a great job verifying electricity delivered at the point of common coupling (PCC), as well as diagnosing equipment malfunction. Still the same ultra-precise results delivered immediately to your inbox.

Physical configuration options for snap on to DIN Rail and DIN Rail enclosure.

PQube 3v DELIVERS INFORMATION THAT CAN BE USED IMMEDIATELY

  • Monitors AC power (or DC power),  but also your process parameter like speed or flow, with additional  analog AC/DC channels
  • Enhances the power diagnostic by also measuring the environment conditions with advanced EnviroSensor probes
  • Your campaign measurements are stored for years, and continuously stored as 1 min (min/max/average) trends daily, or 5 min trends, weekly or monthly. No gaps, you don’t miss a single cycle
  • You can store several thousands of events (16 GB flash memory)
  • Extensive library of waveform triggers on voltage magnitude, voltage HF impulses, frequency, currents inrush , AC/DC channels, and more.
  • All measured parameters are available every half-second in real-time (via Modbus or SNMP)
  • Trends and events can be quickly accessed using your Internet browser – no software needed
  • Interface available in more than 13 languages– the graphs can be delivered in two simultaneous languages (ideal for international teams)

PQube 3v IS EASY TO USE

  • Easy changes in configuration can be done on site with a USB thumb drive, or remotely via Web browser, FTP or email. The configuration is a text file
  • Free firmware updates can be done on site with a USB thumb drive, or via Web browser or FTP

PQube 3v INSTALLS EASY

  • Connects the mains voltage directly into the PQube 3v terminals up to 600VAC nominal
  • Auto configures by auto-detecting the mains frequency, wiring configuration and nominal voltage
  • Allows easy wiring verification and provides status via the embedded color touch screen, can be operated with protection gloves.
  • Can manage connection wiring mistakes after installation is done, via its configuration






PRODUCT CONFIGURATION


The PQube 3v Can be Installed in These Configurations:



Snap onto DIN-rail

Probably the most common way to install a PQube 3, typically used for semiconductor equipment, large medical MRI’s and CT’s, elevator controls, wind turbine nacelles, etc. This is the least expensive, most compact, and simplest installation.


Use your own DIN rail enclosure

If you want your PQube 3 in its own enclosure, either because you don’t have room in your electric panel or you want your PQube 3 to be more visible and accessible, then mount it inside a standard DIN rail enclosure. It’s your easiest and least expensive option.



PRODUCT MANUALS & DOWNLOADS

PQUBE3V DATASHEET
