Nexus 1500+ Meter in Enclosure

Nexus 1500+ Meter in Enclosure

Contact us for more information on this product


View full details

PRODUCT DESCRIPTION

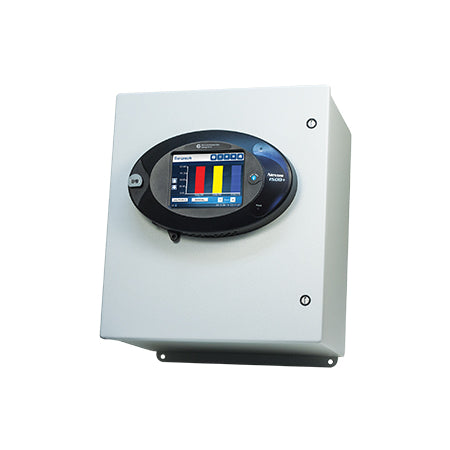

EIG’s Nexus® 1500+ meter in enclosure lets you expand your switchgear capability without an expensive and time-consuming redesign. Mount and wire the meter enclosure next to your switchgear and you are ready to go, with no downtime at all! This is a perfect solution for a retrofit when there is no metering compartment available.

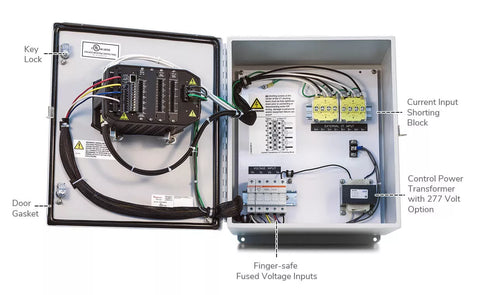

The meter comes standard with a NEMA 1 indoor enclosure and is factory wired with the meter installed. Standard equipment includes voltage fuses, a shorting block for current inputs, and a control power transformer if used with 277/480 Volt power systems. It is offered in four models:

  • 277/480 V AC line powered enclosure (comes equipped with a control power transformer)
  • (120-240) V AC line powered enclosure
  • (18-60) V DC external powered enclosure
  • (120-240) V AC/DC external powered enclosure

Pre-wired Enclosure

  • Save on installation time and labor costs
  • Prevent wiring errors that can cause incorrect data
  • Ensure safety with fused voltage inputs
  • Supports line powered or external powered configurations

Easy Installation

  • Extend switchgear capability quickly with solid metal UL listed NEMA 1X meter enclosure
  • Retrofit existing equipment
  • Prevent tampering with lockable enclosure
  • Easily access meter’s touchscreen display from front panel
