Ensto Distribution Class Surge Arresters

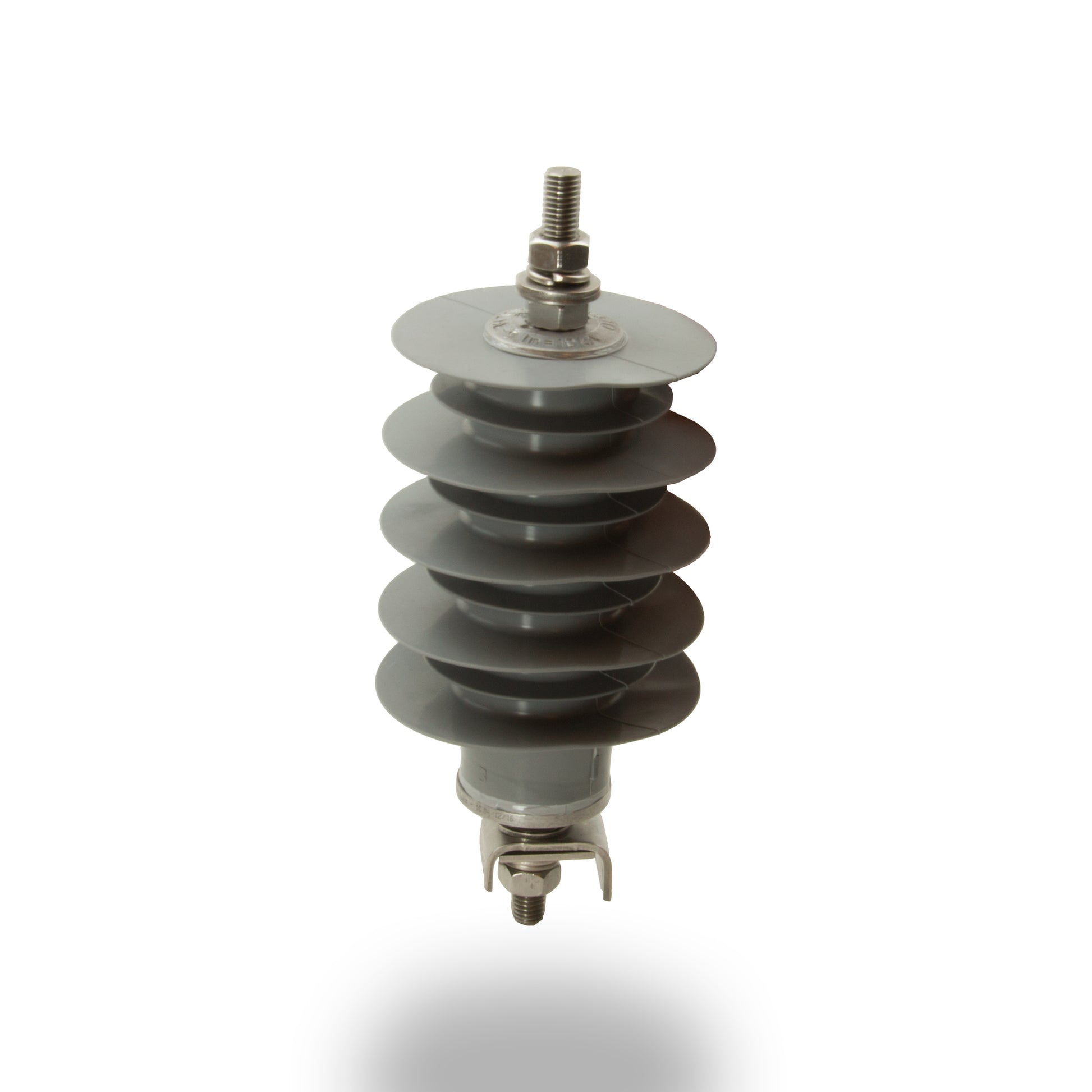

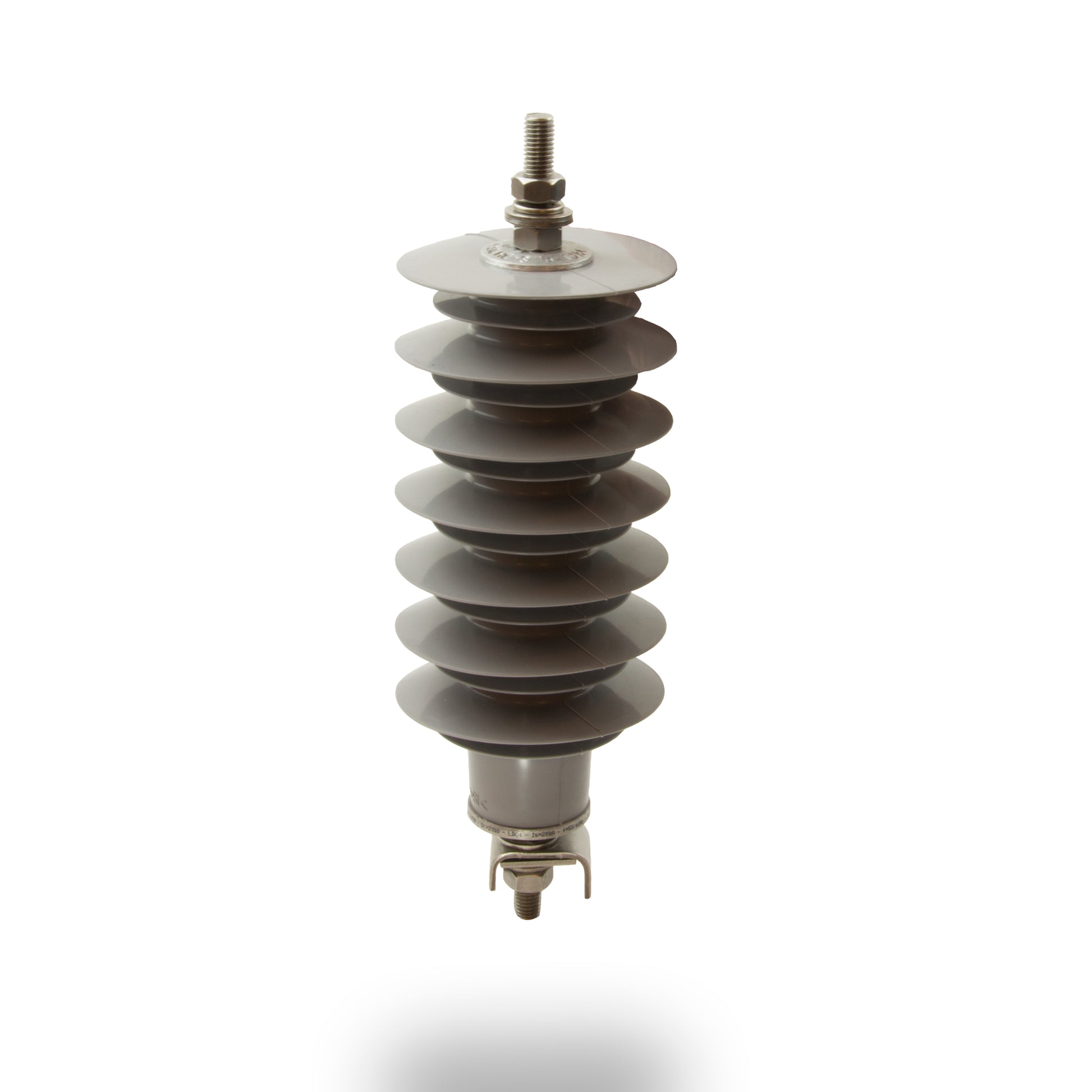

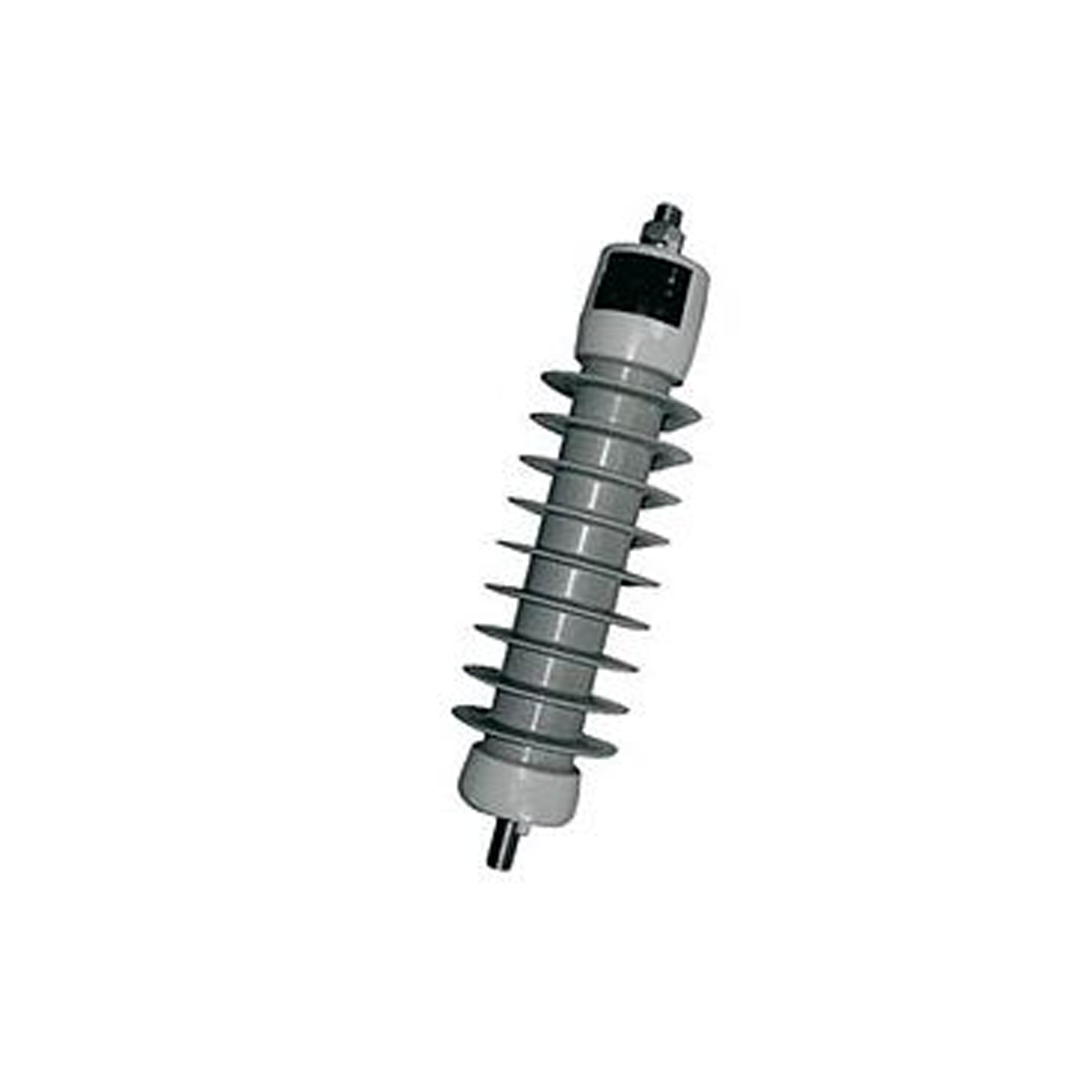

ENSTO Type HE Surge Arrester

Surge Arresters protect Distribution systems and their equipment against over-voltages.
They are key assets to improve power quality, to reduce outage costs, and to increase lifetime of protected equipment.
Our VARISIL™ HE are certified as Distribution Heavy Duty (HD), according to IEEE C62.11

VARISIL™ HE have been manufactured in Ensto's French factory located at Bagnères de Bigorre for more than 20 years; more than 5 million units are in service worldwide.

Design:

VARISIL™ HE are polymer housed gapless metal-oxide surge arresters. The MO resistors are wrapped by a fiberglass reinforced epoxy resin, and then housed by a silicone rubber housing.

Thanks to their optimized discharge voltages, VARISIL™ HE arresters can be used for both standard and riser pole applications.

Operating Conditions & Performance Characteristics

• Ambient air temperatur : -50°C to +50°C (-58°F to 122°F)
• MCOV: from 2.55 kV to 29 kV
• Lightning impulse classifying current Iclass : 10 kA
• High current impuls : 100 kA
• Single impulse charge transfer rating Qrs : 0.49 C
• Thermal charge transfer rating Qth: 1.1 C
• Rated short circuit current Is: 20 kA
• Maximum design cantilever load: 100 Nm (75 ft lbf)

ENSTO Type HE Surge Arrester Brochure
