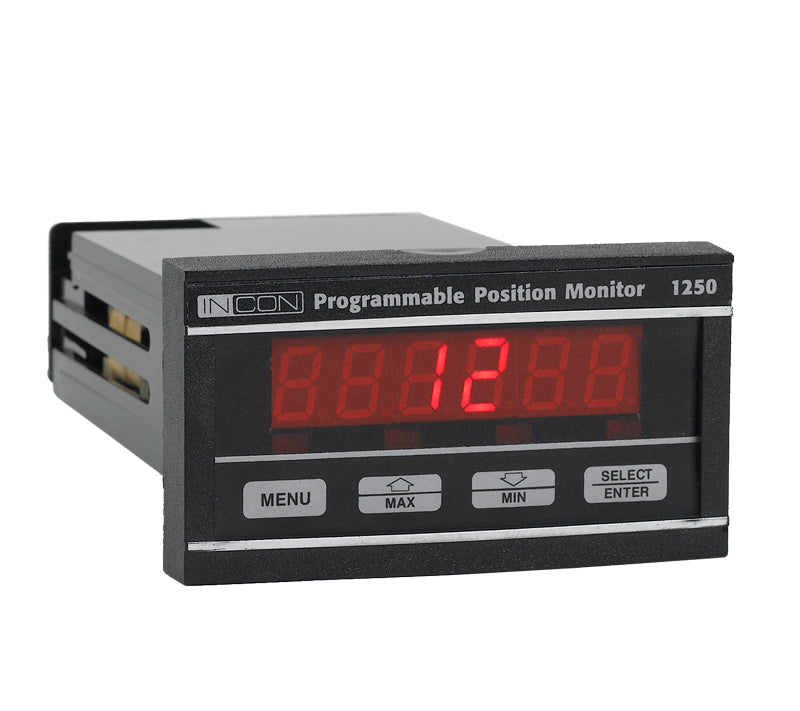

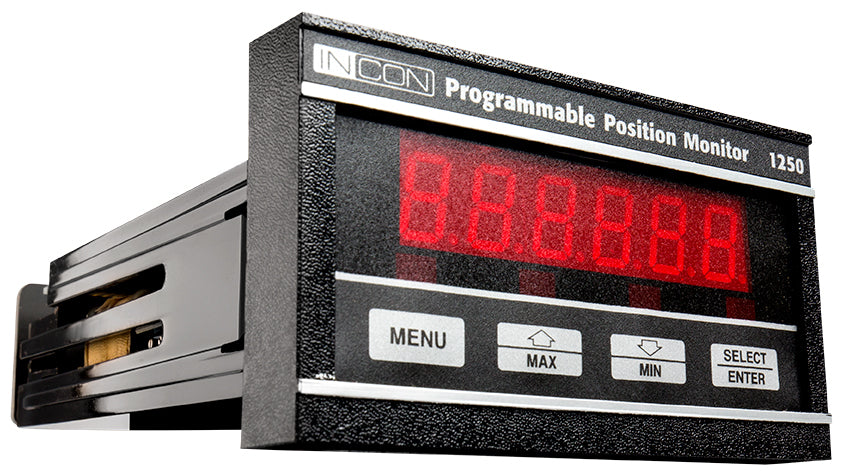

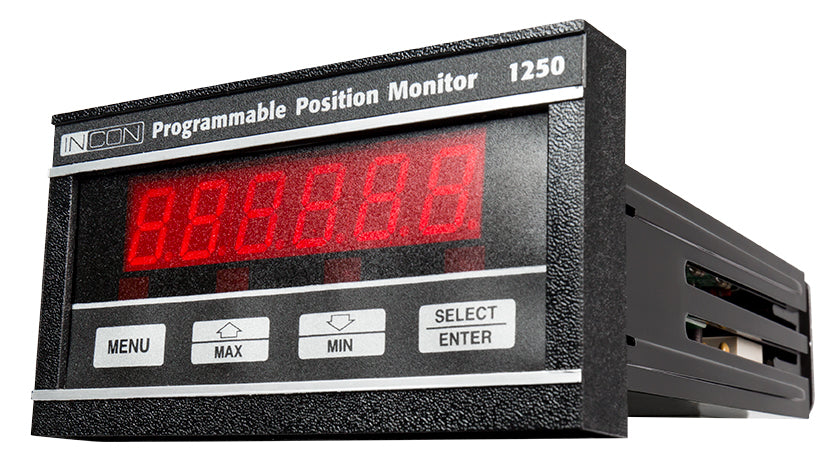

INCON 1250B

INCON 1250B

Contact us for more information on this product


View full details

PRODUCT DESCRIPTION

The Model 1250B provides highly accurate, local and remote indication of load tap changer position and other difficult synchro-based position readings, now with improved communications options.

Utility and Industrial Standard for Measurement of:

  • Transformer Load Tap Changer Position
  • Works with virtually all transformer LTC’s
  • Single Phase Voltage Regulator Position
  • Liquid Level
  • Machine Position
  • Thickness Gauging
  • Spillway Gate Position

CAPABILITIES

This sophisticated instrument can help solve tough position measurement problems

  • Provides absolute local & remote position feedback
  • Informs Dispatchers of LTC or Regulator position in real-time
  • Performs Non-Linear Conversion
  • Interfaces with PLC’s and PC based SCADA systems
  • Addressable RS-485 Multi-Drop Communication
  • RS-232 Serial Communication

BENEFITS

  • Programmable via the Serial Port
  • Proportional Linear or Stepped Analog Output
  • Programmable Hi/Lo Relay Limits
  • ASCII or MODBUS Protocols
  • Highly Visible 5 Digit LED Display
  • Small size fits in 1/8 DIN panel cutout
  • Highly Accurate over Multiple Turns
  • Easy Automation Interface
  • Proven Reliability
  • Maintenance Free
  • Retrofit to Older Systems
  • Simple Programming
  • Cost Effective


PRODUCT MANUALS & DOWNLOADS

BROCHURE

DATASHEET
