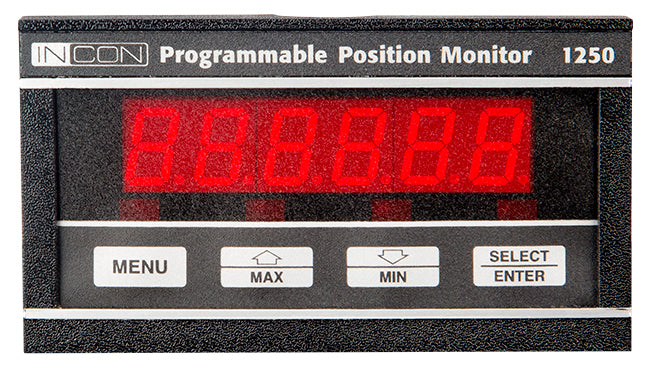

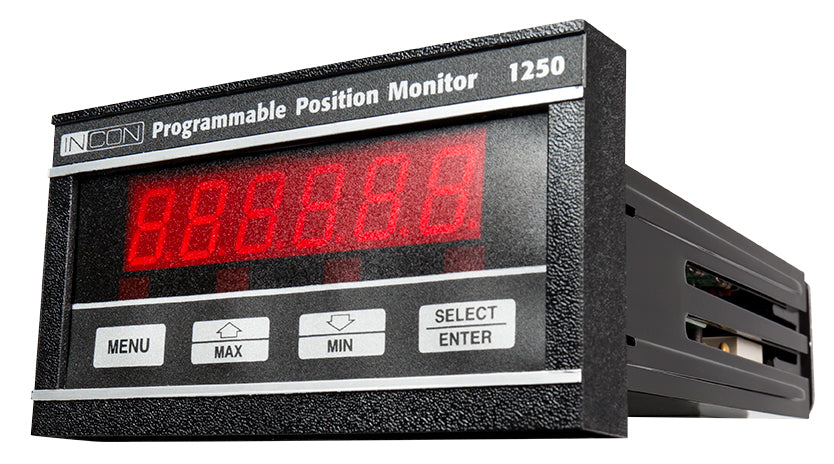

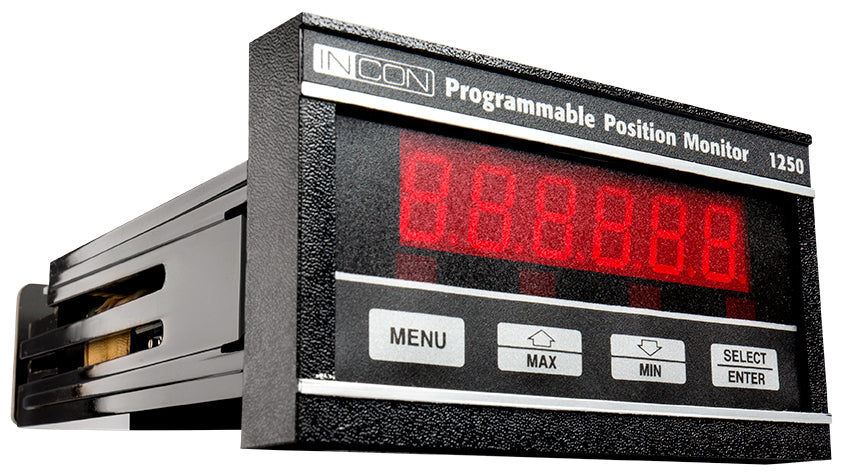

INCON 1250 LTC

INCON 1250 LTC

Contact us for more information on this product


View full details

PRODUCT DESCRIPTION

The Model 1250-LTC provides critical LTC Maintenance Data to assist in making informed decisions, while continuing to provide highly accurate local and remote indication of load tap changer position.

Applications:

  • Transformer Load Tap Changer Position
  • Works in virtually all transformer LTC’s
  • Single Phase Voltage Regulator Position

CAPABILITIES

  • Provides absolute position feedback
  • Tap Change Displacement (position variation, 0.1 degree resolution)
  • Total Operations Count
  • Number of Tap Changes “up to” or “down to” each Tap
  • Number of Consecutive Tap Changes in one Direction
  • Number of Days Since First or Last Change to Highest and Lowest Tap (Draghands)
  • Number of Days Since Passing Through Neutral
  • “Unstable Signal” and loss of signal detection
  • Momentary Relay Acknowledgement at Each Tap Change
  • High Tap and Low Tap Alarm Limits

BENEFITS

  • Interfaces with PLC’s and PC-Based SCADA systems
  • Elapsed Time Clock
  • Full Duplex RS-232 Serial Communication
  • Addressable RS-485 Multi-Drop Communication
  • Programmable via the Serial Port
  • 2ea, Form A Dry Contact Relays
  • Proportional Stepped Analog Output
  • ASCII or MODBUS Protocols
  • Highly Visible 5 Digit LED Display
  • Small size fits in 1/8 DIN panel cut-out
  • Maintenance Free
  • Can be retrofited to older LTC’s with existing synchros
  • Easy Installation and Programming
  • Flexible Communication Options
