F-PRO Feeder Protection Relays

F-PRO Feeder Protection Relays

Contact us for more information on this product


View full details

PRODUCT DESCRIPTION

The F-PRO family of numerical multifunction relays provide complete feeder protection with a wide range of protection functions suitable for transmission, distribution and industrial applications. This broad selection of relay functionality and hardware options allow customers to choose the best suited and most cost-effective solution for each application. High reliability comes from robust and field-proven design, as well as self-monitoring hardware and a software watchdog.

The F-PRO relays include metering, sequence of event (SOE) reporting with 1 ms time stamp resolution, high quality oscillography waveform capture and fault log facility for analysis. The intuitive and simple Windows-based Relay Control Panel software allows easy configuration and disturbance analysis. Communication options supporting serial and Ethernet interfaces, as well as multiple protocols, allow simplified system integration with substation control and SCADA systems.

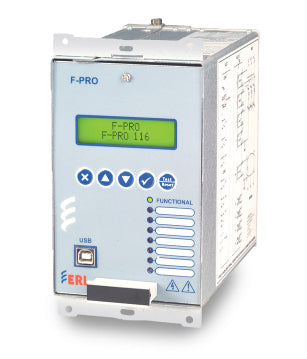

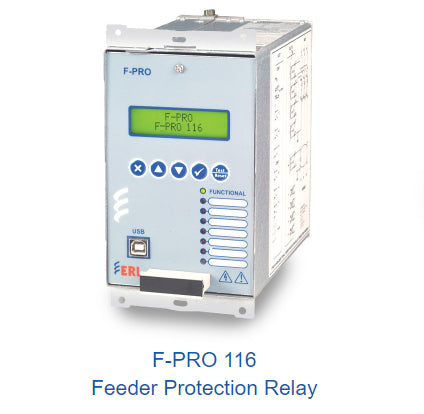

F-PRO 116 Feeder Protection Relay

Applications

  • Overcurrent protection for transmission, distribution and industrial equipment
  • Two-stage breaker failure protection and breaker condition monitoring

Features and Benefits

  • IEC, ANSI and user-defined IDMTL curves and user-defined curve for all time grading and protection co-ordination
  • Complete user configurability of output contacts, status inputs and status LED indications on front panel
  • Two stages of instantaneous/definite/inverse time O/C setting
  • Definite time/ANSI decay characteristics for function reset provides protection for pecking/flashing faults

Flexible Communications

  • Serial interface with Modbus ASCII, Modbus RTU, IEC 60870-5-103 and DNP3 Level 2

Easy to Use and Maintain

  • Draw out construction
  • Site selectable 1A/5A CT rating
  • HMI with navigation and configuration keys and alpha numeric display
  • Intuitive Windows-based configuration and analysis software


Download Items:

F-PRO 116 Datasheet

F-PRO 116 Ordering Template

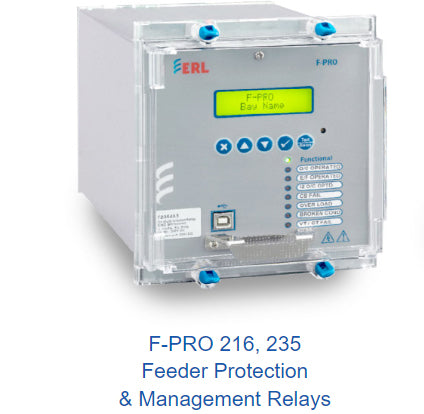

F-PRO 216, 235 Feeder Protection Relays

Applications

  • Primary and back-up current, voltage and frequency protection for transmission and distribution equipment
  • Load shedding schemes based on frequency and rate-of-change of frequency elements
  • Restricted and sensitive earth fault protection
  • Two-stage breaker failure protection and breaker condition monitoring
  • Busbar protection for low voltage levels can be realized by interlocking schemes

Features and Benefits

  • IEC, ANSI and user-defined IDMTL curves and user-defined curve for all time grading and protection co-ordination
  • Complete user configurability of output contacts, status inputs and status LED indications on front panel
  • Second harmonic Inrush blocking and restraint
  • Two Stages of Instantaneous/ definite/ inverse time O/C setting
  • Definite time/ANSI decay characteristics for function reset provides protection for pecking/flashing faults

Flexible Communications

  • Serial and Ethernet interfaces with IEC60870-5-103, MODBUS, IEC 61850 communication protocols. DNP3 available on select models
  • Optional Parallel Redundancy Protocol (PRP), IEC 62439-3

Easy to Use and Maintain

  • Draw out construction
  • Site selectable 1A/5A CT rating
  • HMI with navigation and configuration keys and alpha numeric display
  • Intuitive Windows-based configuration and analysis software


Download Items:

 F-PRO 216 Manual

F-PRO 235 Manual

F-PRO 2000 Datasheet

F-PRO 2000 Ordering Template

Software

F-PRO Offliner Release Description

F-PRO 216 Firmware Release Description

F-PRO 235 Firmware Release Description

USB Gadget Driver for F-PRO 200 Series

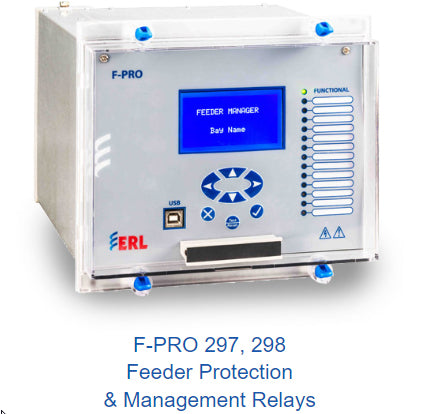

F-PRO 297, 298 Feeder Protection Relays

Applications

  • Primary and back-up current, voltage and frequency protection for transmission and distribution equipment
  • Load shedding schemes based on frequency and rate-of-change of frequency elements
  • Restricted and sensitive earth fault protection
  • Two-stage breaker failure protection and breaker condition monitoring
  • Busbar protection for low voltage levels can be realized by interlocking schemes

Features and Benefits

  • IEC, ANSI and user-defined IDMTL curves and user-defined curve for all time grading and protection co-ordination
  • Complete user configurability of output contacts, status inputs and status LED indications on front panel
  • Second harmonic Inrush blocking and restraint
  • Two Stages of Instantaneous/ definite/ inverse time O/C setting
  • Definite time/ANSI decay characteristics for function reset provides protection for pecking/flashing faults

Flexible Communications

  • Serial and Ethernet interfaces with IEC60870-5-103, MODBUS, IEC 61850 communication protocols. DNP3 available on select models
  • Optional Parallel Redundancy Protocol (PRP), IEC 62439-3

Easy to Use and Maintain

  • Draw out construction
  • Site selectable 1A/5A CT rating
  • HMI with navigation and configuration keys and alpha numeric display
  • Intuitive Windows-based configuration and analysis software




Download Items:

F-PRO 297 Manual

F-PRO 298 Manual

F-PRO 2000 Datasheet

F-PRO 2000 Ordering Template

Software

F-PRO Offliner Release Description

F-PRO 297 Firmware Release Description

F-PRO 298 Firmware Release Description

USB Gadget Driver for F-PRO 200 Series
