NOARK/CHINT Gas Insulated Switchgear

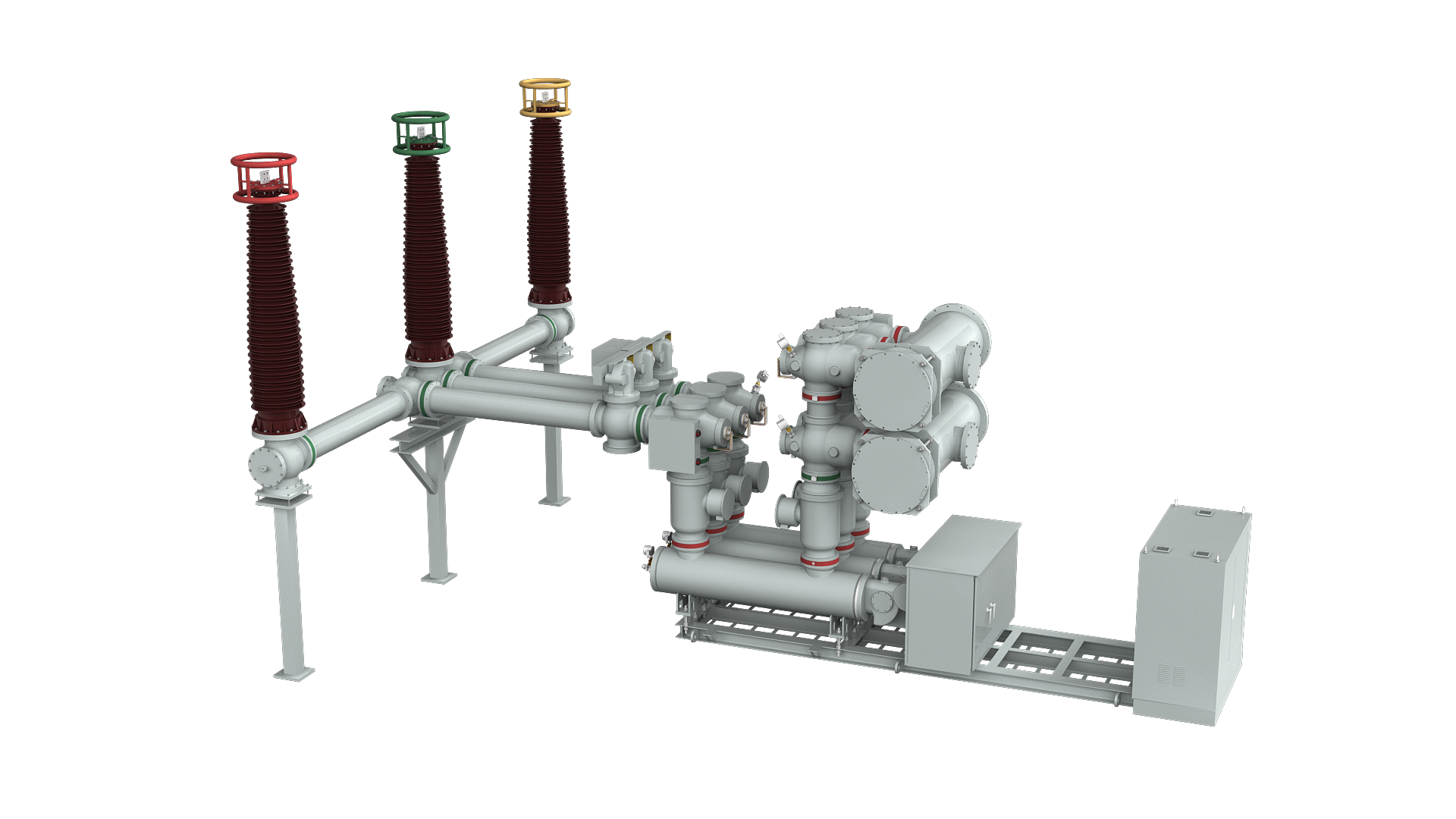

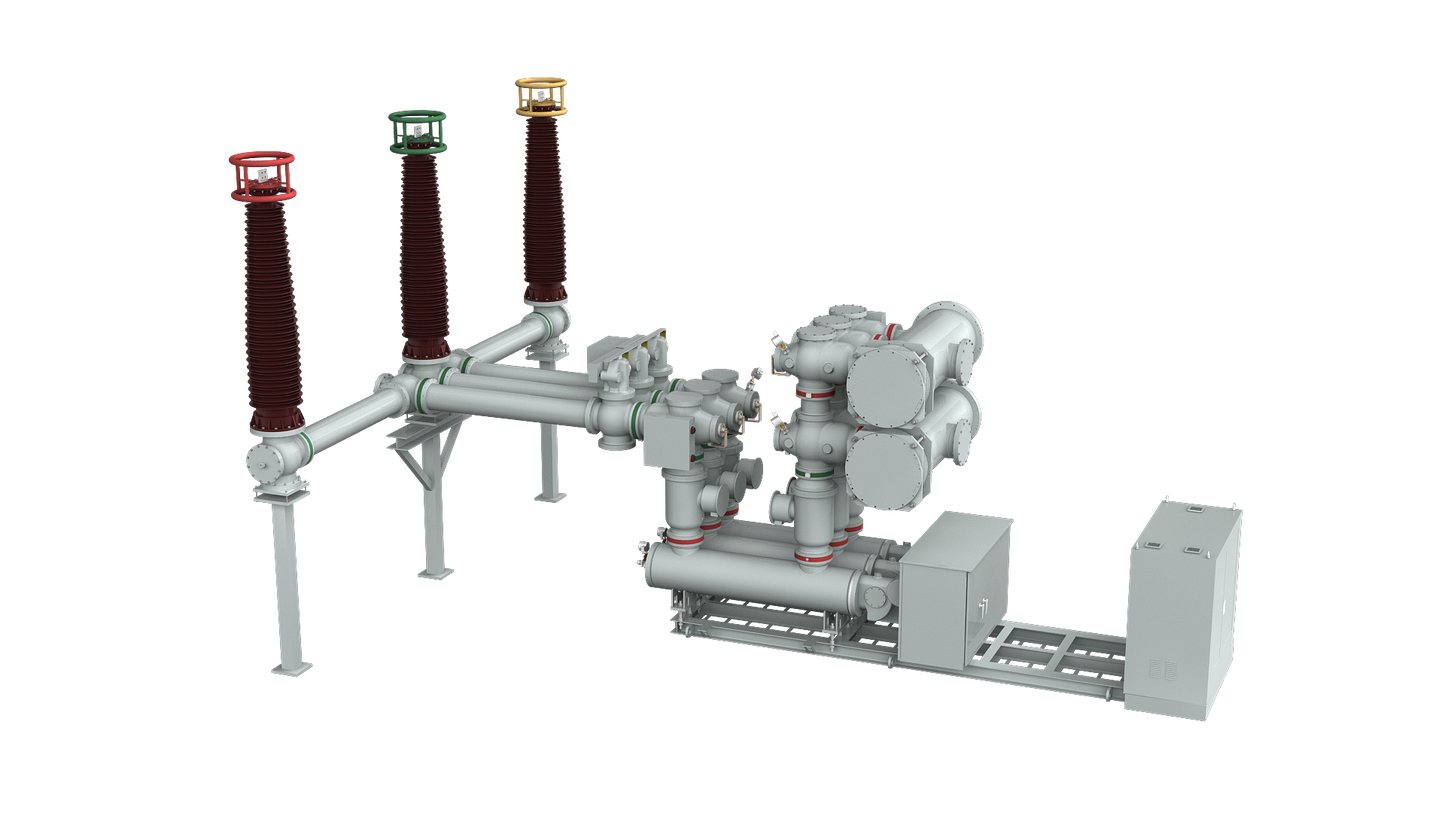

ZFW34A-252 GIS is composed of standard components, which can meet the demand for substation optimization design through the flexible combination between modules. It saves space and conforms to technical requests.

Advantages:

• Inspected to be qualified by KEMA High level of parameters, advanced structural design

• Low partial discharge, full bay ≤ 3 Pc, partition ≤ 2Pc

• Operating mechanism adopts aluminum alloy integral casting, circuit breaker mechanical endurance, 12,000 times

• Double sealing ring structure, annual leakage rate ≤0.1%

• Compact design, the minimum width of a single bay is 800 mm

• Ability to apply in cold, humid, salt fog, coastal, high-altitude areas

• Partition and enclosure are produced by CHINT, enabling very short lead time
